Evaluation Kits

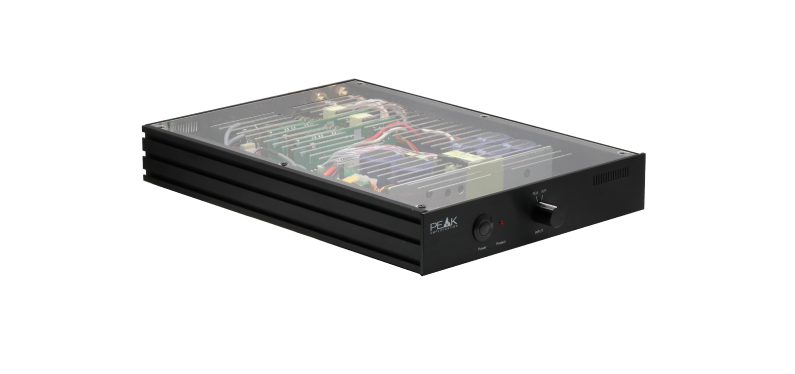

Peak Amplification Evaluation Kits (EVKs) provide a ready-to-use platform for engineers to evaluate Peak amplifier modules in real system conditions. By streamlining hardware integration, these kits allow technical teams to bypass complex prototyping and move directly into rigorous performance validation.

  • 1U / 2U half-rack wide chassis
  • Accepts RCA and XLR inputs
  • Three gain levels, selectable
  • Universal AC power
  • Input selector controls, power control and protection indicator

Equipped with

Amplifier

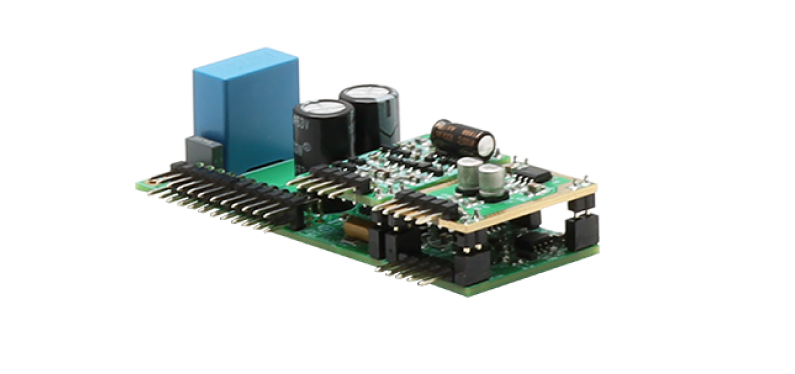

  • Choice of amplifier from the Integrated line (SUB, BV, SP or HP series) or Flexible line (AM series)

Power Supply

  • Separate power supply for EVKs from the Flexible line amplifiers
  • No separate power supply needed for EVKs from the Integrated line amplifiers

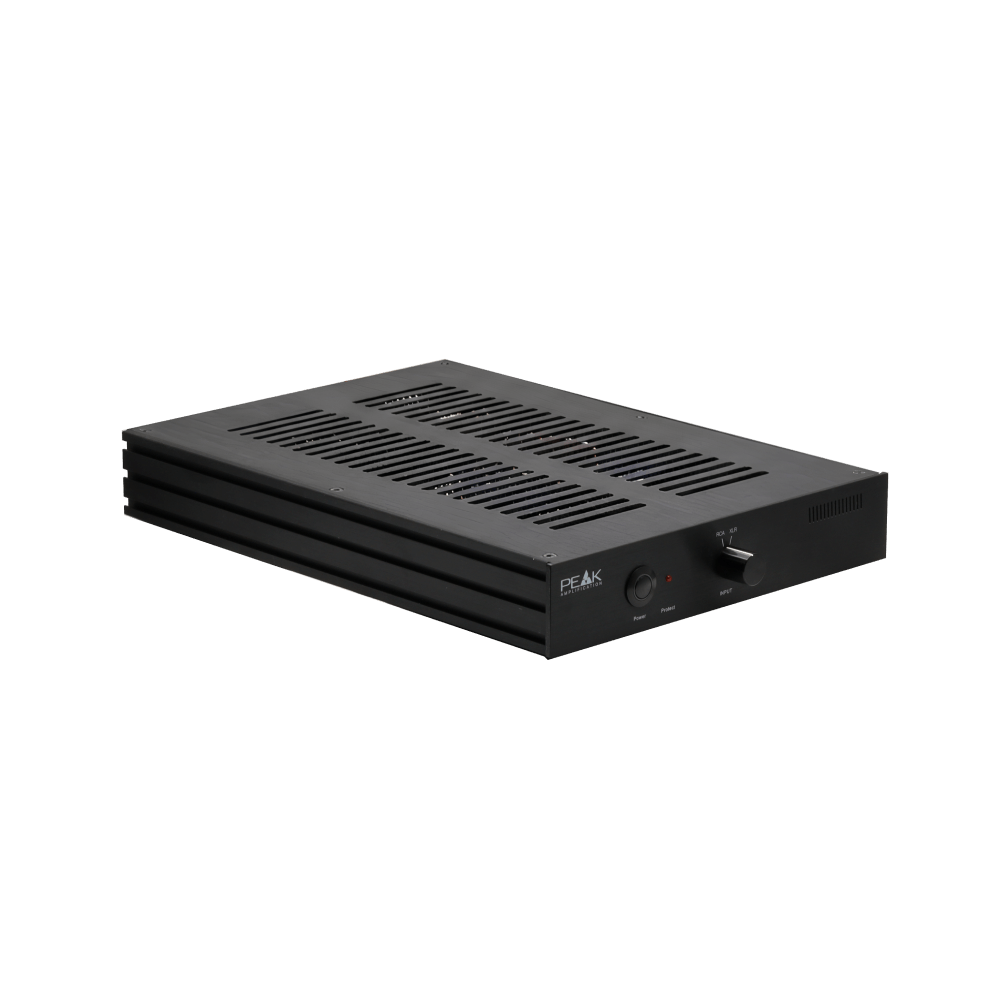

Housing

  • 1U or 2U height and half-rack width; aluminum extrude housing

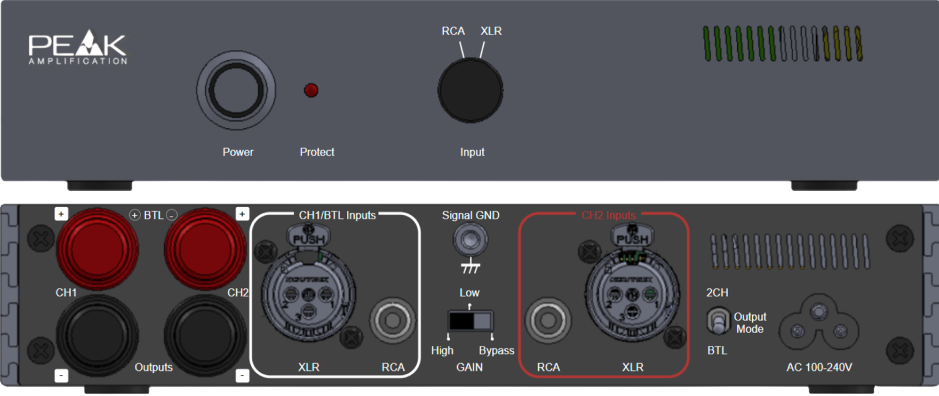

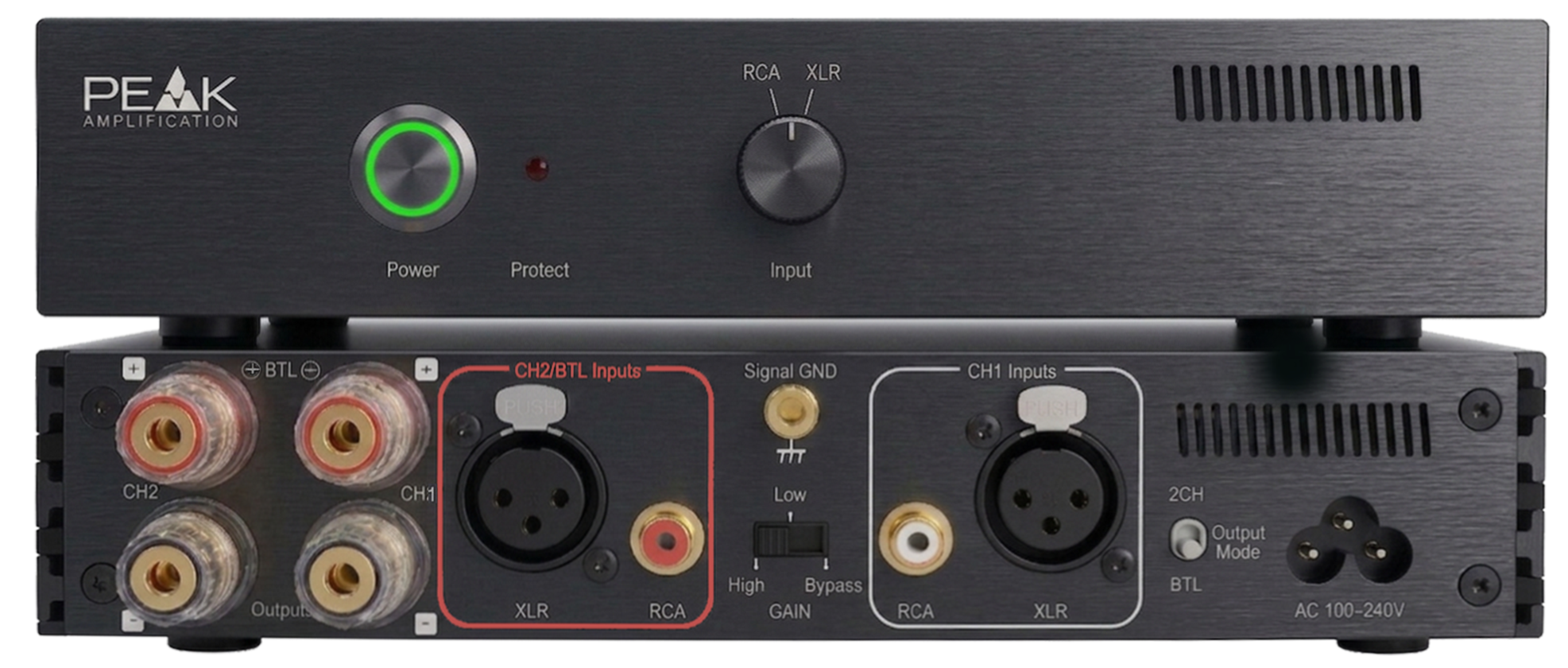

  • Rear plate: connectors for mains power, XLR and RCA inputs, two channel speaker outputs, 2 channel/bridged selection, 3 level gain switch, and grounding post
  • Front plate: power switch, input selector, and protection LED indicator

Apply

Flexible: AM-Series (4)

AM-Series

AM-250C2-BD

The AM-250C2-BD can support 2 × 125W output at 4Ω. The AM-250C2-BD has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 2 × 125W Amplifier Module
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 120μV (A-weighted)
  • Output Impedance: 30mΩ
  • Dimensions: L95.0 × W50.0 × H29.6 mm
  • Weight: 77g

AM-Series

AM-700C1

The AM-700C1 can support 1 × 700W output at 4Ω. The AM-700C1 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 700W Amplifier Module
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 110μV (A-weighted)
  • Output Impedance: 75mΩ
  • Compact: L92.0 × W47.0 × H40.0 mm
  • Weight: 101g

AM-Series

AM-500C2-BD

The AM-500C2-BD can support 2 × 250W output at 4Ω. The AM-500C2-BD has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 2 × 250W Amplifier Module
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 120μV (A-weighted)
  • Output Impedance: 75mΩ
  • Dimensions: L90.0 × W70.0 × H34.5 mm
  • Weight: 163g

AM-Series

AM-500C1

The AM-500C1 can support 1 × 500W output at 4Ω. The AM-500C1 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 500W Amplifier Module
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 130μV (A-weighted)
  • Output Impedance: 65mΩ
  • Dimensions: L92.0 × W47.0 × H40.0 mm
  • Weight: 98g

Flexible: PS-Series (4)

PS-Series

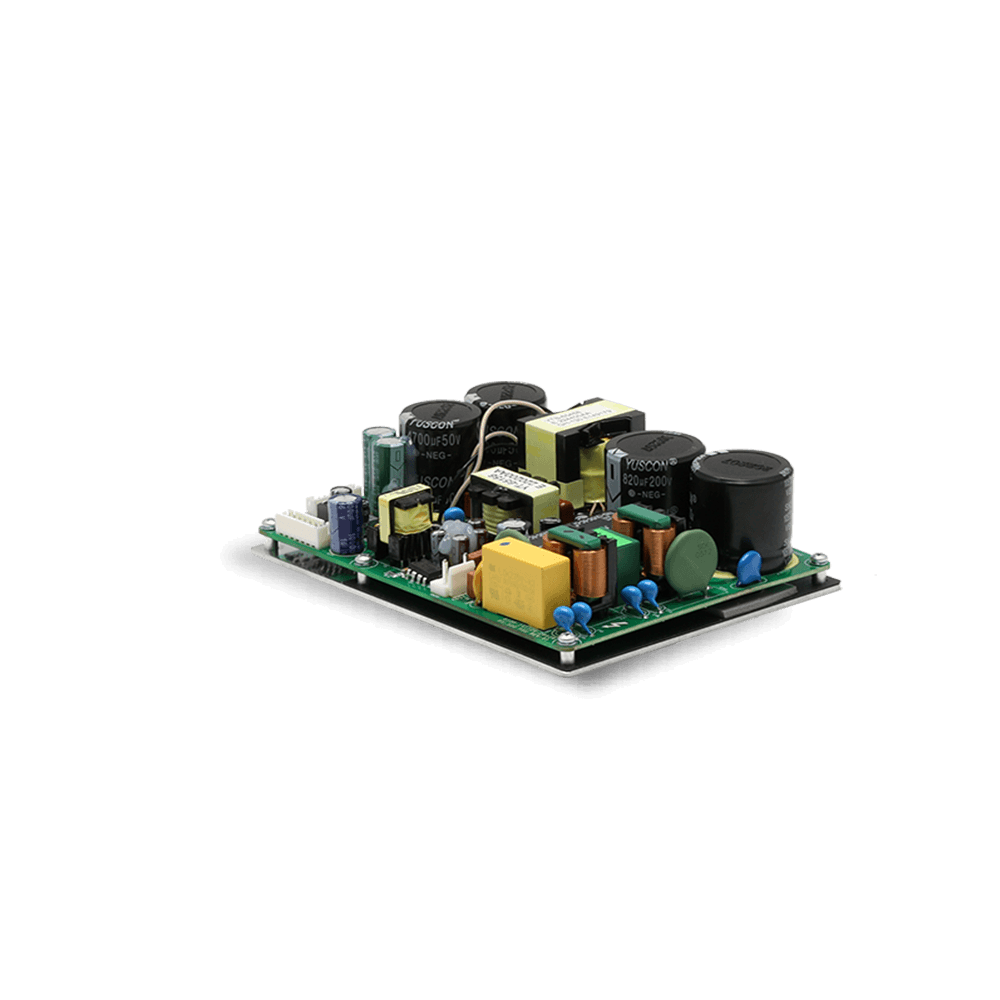

PS-500-35V

The PS-500-35V can support 500W output, and has been pre-approved for safety and EMC compliance. The PS-500-35V has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 500W Power Supply Module
  • Auto-Switching Power Supply (115 / 230V)
  • Standby Consumption: 0.25W
  • Dimensions: L143.0 × W108.0 × H40.6 mm
  • Weight: 495g

PS-Series

PS-1000-35V

The PS-1000-35V can support 1000W output, and has been pre-approved for safety and EMC compliance. The PS-1000-35V has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 1000W Power Supply Module
  • Auto-Switching Power Supply (115 / 230V)
  • Standby Consumption: 0.25W
  • Dimensions: L160.0 × W110.0 × H50.0 mm
  • Weight: 681g

PS-Series

PS-1500-85V

The PS-1500-85V can support 1500W output, and has been pre-approved for safety and EMC compliance. The PS-1500-85V has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 1500W Power Supply Module
  • Universal mains regulated power supply with PFC
  • Standby Consumption: 0.25W
  • Dimensions: L176.0 × W122.0 × H60.0 mm
  • Weight: 833g

PS-Series

PS-1000-70V

The PS-1000-70V can support 1000W output, and has been pre-approved for safety and EMC compliance. The PS-1000-70V has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 1000W Power Supply Module
  • Auto-Switching Power Supply (115 / 230V)
  • Standby Consumption: 0.25W
  • Dimensions: L160.0 × W112.0 × H51.0 mm
  • Weight: 680g

‍

Flexible: GaN Amplifier EVKs (2)

AM-Series

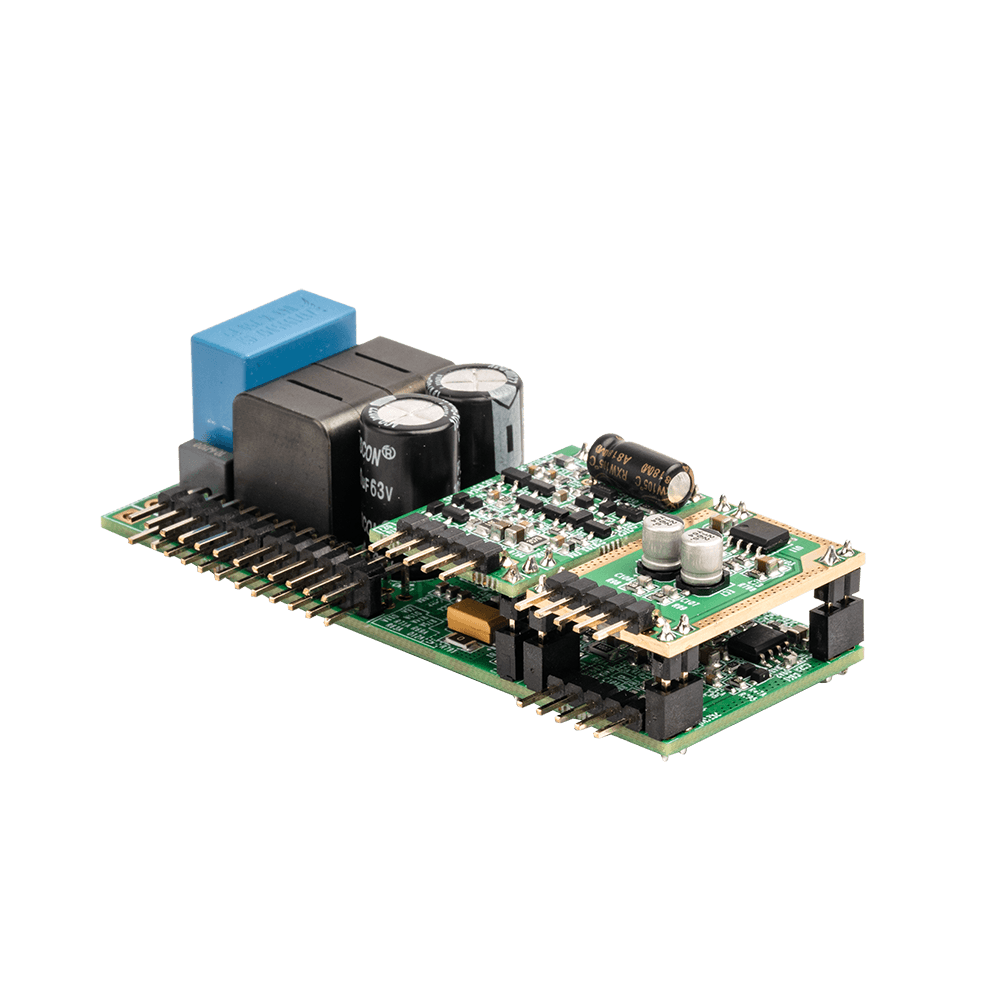

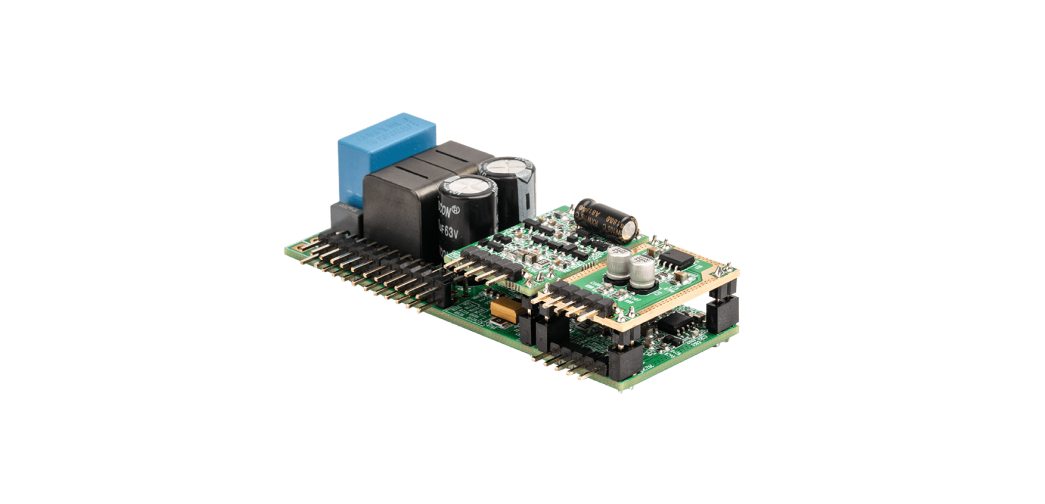

AM-200C1G

The AM-200C1G amplifier module integrates Infineon’s CoolGaN™ power transistor IGB110S10S1 with the IRS20957S Class-D controller IC, delivering exceptional power density, switching efficiency, and audio fidelity. This design exemplifies the advantages of GaN technology in high-performance Class-D audio amplification. This one-channel design is scalable up to 200W × 1 channel at 4Ω without a heatsink. This topology represents an analog version of a second-order sigma-delta modulation, having a Class-D switching stage inside the loop. The module is designed as a compact single channel amplifier to be mounted vertically on a carrier board, allowing for wide flexibility in product applications.

Specifications

  • 1 × 200W Amplifier Module
  • THD: 0.0006% @ 10W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 28μV (A-weighted)
  • Output Impedance: 8mΩ
  • Dimensions: L90.0 × W30.0 × H26.0 mm
  • Weight: 49g

AM-Series

AM-500C1G

The AM-500C1G amplifier module integrates Infineon’s CoolGaN™ power transistor IGC090S18S1 with the IRS20957S Class-D controller IC, delivering exceptional power density, switching efficiency, and audio fidelity. This design exemplifies the advantages of GaN technology in high-performance Class D audio amplification. This one-channel design is scalable up to 500W × 1 at 4Ω (300W × 1 at 2Ω, 250W × 1 at 8Ω) without heatsink.

Specifications

  • 1 × 500W Amplifier Module
  • THD: 0.0007% @ 10W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 40μV (A-weighted)
  • Output Impedance: 6mΩ
  • Dimensions: L115.0 × W30.0 × H29.0 mm
  • Weight: 65g

‍

Integrated: High Power (2)

High Power

HP-1000C2-BD

The HP-1000C2-BD module is designed for flexibility in application: it can support a single channel Hi-Z application in bridge mode driven up to 1000W, or it can be configured as 2 channels output in single-end mode with the available 500W (at 4Ω) power divided between the 2 channels as needed. For example, both channels could be driven at 500W (at 4Ω). In another application one channel could be driven at 900W (at 3Ω), with the other channel at 100W. The module has built-in OTP and OCP functions, and it has been pre-approved for safety and EMC compliance. The HP-1000C2-BD is a mature and stable product, providing flexible applications for 2-way speaker design and fast design-in to minimize audio product time to market.

Specifications

  • 2 channels 500W Amplifier Module with Integrated Power Supply
  • 1000W peak output per channel
  • Universal mains regulated power supply with PFC
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 150μV (A-weighted)
  • Total Efficiency: 80% @ 1000W, 6Ω, 230VAC
  • Standby Consumption: 0.22W
  • Dimensions: L251.0 × W122.0 × H76.6 mm
  • Weight: 1390g

High Power

HP-1500C2-BD

The HP-1500C2-BD module is designed for flexibility in application: it can support a single channel Hi-Z application in bridge mode driven up to 1500W, or it can be configured as 2 channels output in single-end mode with the available 750W (at 4Ω) power divided between the 2 channels as needed. For example, both channels could be driven at 750W (at 4Ω). In another application one channel could be driven at 1000W (at 3Ω), with the other channel at 500W. The module has built-in OTP and OCP functions, and has been pre-approved for safety and EMC compliance. The HP-1500C2-BD is a mature and stable product, providing flexible applications for 2-way speaker design and fast design-in to minimize audio product time to market.

Specifications

  • 2 channels 750W Amplifier Module with Integrated Power Supply
  • 1000W peak output per channel
  • Universal mains regulated power supply with PFC
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 180μV (A-weighted)
  • Total Efficiency: 80% @ 1500W, 8Ω, 230VAC
  • Standby Consumption: 0.25W
  • Dimensions: L251.0 × W122.0 × H76.6 mm
  • Weight: 1410g

Integrated: Superior Performance (3)

Superior Performance

SP-300C2-BD

The SP-300C2-BD with 2 channels output in single-end mode, or one channel output in bridge mode. It can support single channel driven up to 300W at 4Ω , which provides flexible application for 2-way / 3-way speaker design. The SP-300C2-BD has built-in OTP, OCP protect functions, and it has been pre-approved for safety and EMC compliance. The SP-300C2-BD is a mature and stable product, which can achieve the fast design-in and minimized time to market.

Specifications

  • 2 channels 300W Amplifier Module with Integrated Power Supply
  • 300W peak output per channel
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 110μV (A-weighted)
  • Total Efficiency: 74.2% @ 300W, 4Ω, 230VAC
  • Standby Consumption: 0.17W
  • Dimensions: L194.0 × W105.0 × H41.0 mm
  • Weight: 679g

‍

Superior Performance

SP-500C2-BD

The SP-500C2-BD with 2 channels output in single-end mode, or one channel output in bridge mode. It can support single channel driven up to 500W at 4Ω, which provides flexible application for 2-way / 3-way speaker design. The SP-500C2-BD has built-in OTP, OCP protect functions, and it has been pre-approved for safety and EMC compliance. The SP-500C2-BD is a mature and stable product, which can achieve the fast design-in and minimized time to market.

Specifications

  • 2 channels 500W Amplifier Module with Integrated Power Supply
  • 500W peak output per channel
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.009% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 120μV (A-weighted)
  • Total Efficiency: 79% @ 500W, 4Ω, 230VAC
  • Standby Consumption: 0.17W
  • Dimensions: L218.0 × W110.0 × H45.0 mm
  • Weight: 780g

Superior Performance

SP-700C2-BD

The SP-700C2-BD module is designed for flexibility in application: it can support a single channel in bridge mode driven up to 700W (at 4Ω), or it can be configured as 2 channels output in single-end mode with the available 700W power divided between the 2 channels as needed. For example, both channels could be driven at 350W. In another application one channel could be driven at 500W, with the other channel at 200W. The module has built-in OTP and OCP functions, and has been pre-approved for safety and EMC compliance. The SP-700C2-BD is a mature and stable product, providing flexible applications for 2-way speaker design and fast design-in to minimize audio product time to market.

Specifications

  • 2 channels 700W Amplifier Module with Integrated Power Supply
  • 700W peak output per channel
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.008% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB (SE), 32dB (BTL)
  • Output Noise: 120μV (A-weighted)
  • Total Efficiency: 82% @ 2 × 350W, 4Ω, 230VAC
  • Standby Consumption: 0.18W
  • Dimensions: L218.0 × W110.0 × H51.6 mm
  • Weight: 830g

Integrated: Best Value (3)

Best Value

BV-500C2

The BV-500C2 can support 2 × 250W output at 4Ω, and has been pre-approved for safety and EMC compliance. The BV-500C2 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 2 × 250W Amplifier Module with Integrated Power Supply
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 90μV (A-weighted)
  • Output Impedance: 30mΩ
  • Total Efficiency: 82% @ 2 × 250W, 4Ω, 230VAC
  • Standby Consumption: 0.18W
  • Dimensions: L194.0 × W105.0 × H40.0 mm
  • Weight: 720g

‍

Best Value

BV-300C2

The BV-300C2 can support 2 × 150W output at 4Ω, and has been pre-approved for safety and EMC compliance. The BV-300C2 has built-in OTP, OCP protection functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 2 × 150W Amplifier Module with Integrated Power Supply
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.01% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 120μV (A-weighted)
  • Output Impedance: 30mΩ
  • Total Efficiency: 82% @ 2 × 150W, 4Ω, 230VAC
  • Standby Consumption: 0.25W
  • Dimensions: L173.0 × W93.0 × H40.0 mm
  • Weight: 440g

Best Value

BV-700C2

The BV-700C2 module is designed to support 2 × 350W at 4Ω. The module has built-in OTP and OCP functions, and has been pre-approved for safety and EMC compliance. The BV-700C2 is a mature and stable product, providing fast design-in to minimize audio product time to market.

Specifications

  • 2 × 350W Amplifier Module with Integrated Power Supply
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.08% @ 1W (4Ω, 1kHz)
  • Voltage Gain: 26dB
  • Output Noise: 120μV (A-weighted)
  • Output Impedance: 100mΩ
  • Total Efficiency: 82% @ 2 × 350W, 4Ω, 230VAC
  • Standby Consumption: 0.16W
  • Dimensions: L218.0 × W110.0 × H50.6 mm
  • Weight: 830g

‍

Integrated: Subwoofer (5)

Subwoofer

SUB-1500

The SUB-1500 can support 1500W output at 4Ω, and has been pre-approved for safety and EMC compliance. The SUB-1000 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 1500W Subwoofer Amplifier Module with Integrated Power Supply
  • Universal mains regulated power supply with PFC
  • THD+N: 0.015% @ 1W (4Ω, 100Hz)
  • Voltage Gain: 32dB
  • Output Noise: 250μV
  • Output Impedance: 50mΩ
  • Total Efficiency: 79% @ 1000W, 4Ω, 230VAC
  • Standby Consumption: 0.2W
  • Dimensions: L217.5 × W123.0 × H60.0 mm
  • Weight: 1125g

Subwoofer

SUB-1000

The SUB-1000 can support 1000W output at 4Ω, and has been pre-approved for safety and EMC compliance. The SUB-1000 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 1000W Subwoofer Amplifier Module with Integrated Power Supply
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.015% @ 1W (4Ω, 100Hz)
  • Voltage Gain: 32dB
  • Output Noise: 150μV
  • Output Impedance: 62.5mΩ
  • Total Efficiency: 80% @ 1000W, 4Ω, 230VAC
  • Standby Consumption: 0.2W
  • Dimensions: L225.0 × W110.0 × H50.6 mm
  • Weight: 985g

Subwoofer

SUB-750

The SUB-750 can support 750W output at 4Ω, and has been pre-approved for safety and EMC compliance. The SUB-750 has built-in OTP, OCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 750W Subwoofer Amplifier Module with Integrated Power Supply
  • Auto-Switching Power Supply (115 / 230V)
  • THD+N: 0.015% @ 1W (4Ω, 100Hz)
  • Voltage Gain: 32dB
  • Output Noise: 210μV
  • Output Impedance: 60mΩ
  • Total Efficiency: 78% @ 750W, 4Ω, 230VAC
  • Standby Consumption: 0.18W
  • Dimensions: L225.0 × W110.0 × H50.6 mm
  • Weight: 928g

Subwoofer

SUB-500

The SUB-500 can support 500W output at 4Ω, and has been pre-approved for safety and EMC compliance. The SUB-500 has built-in OTP, OCP, DCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 500W Subwoofer Amplifier Module with Integrated Power Supply
  • Universal with PFC Power Supply (100VAC ~ 240VAC)
  • THD+N: 0.02% @ 1W (4Ω, 100Hz)
  • Voltage Gain: 30dB
  • Output Noise: 250uV
  • Output Impedance: 65mΩ
  • Total Efficiency: 83% @ 500W, 4Ω, 230VAC
  • Standby Consumption: 0.3W
  • Dimensions: L178.0 × W90.0 × H42.0 mm
  • Weight: 590g

Subwoofer

SUB-300

The SUB-300 can support 300W output at 4Ω, and has been pre-approved for safety and EMC compliance. The SUB-300 has built-in OTP, OCP, DCP protect functions, and it is a mature and stable product. The design enables fast design-in and minimizes time to market.

Specifications

  • 1 × 300W Subwoofer Amplifier Module with Integrated Power Supply
  • Universal with PFC Power Supply (100VAC ~ 240VAC)
  • THD+N: 0.019% @ 1W (4Ω, 100Hz)
  • Voltage Gain: 27.5dB
  • Output Noise: 250uV
  • Output Impedance: 60mΩ
  • Total Efficiency: 84% @ 300W, 4Ω, 230VAC
  • Standby Consumption: 0.3W
  • Dimensions: L178.0 × W90.0 × H42.0 mm
  • Weight: 537g
